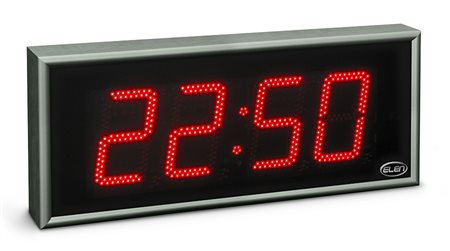

Digital clock for displaying time, date and temperature
NDC 160/4 R H20

Price without VAT: 598.00 €
Price with VAT: 717.60 €

Description

Digits4
Number format88:88
HH:MM (time), DD:MM (date), XX.X° (temperature)
LED type7-segment superbright LED modules
Height of characters160 mm
Type of displaying elementsred
Readability range70 m
Frame colourplattinum matt
ControlIR remote control
Inputs / Outputstemperature sensor, RS 485 serial line
Frame typeaesthetic anodized aluminum frame
Class of protectionIP 20 (suitable for indoor use only)
Power supply230 VAC, connector for power cable included with clock delivery
Power consumption16 W
Dimensions670 x 280 x 40 (105) mm (including tilting console)
Weight5,70 kg

Application:

The NDC 160/4 R digital clocks are used for displaying time, date and temperature. Their aesthetic design makes them suitable to be used in architecturally demanding indoor applications such as offices, banks, public institutions, company interiors, or industrial halls, etc. These displays are mountable on the wall. For setting the clock parameters (time, date, switching period, brightness, …), an IR remote control is necessary. It can be ordered separately, please see link below.

Detailed information:

  • Time/Date format HH:MM (time), DD:MM (date), XX.X° (temperature)*.
  • Information can be shown in the intervals of 0-99 sec.
  • Wireless setup using IR remote control, or automatically using a GPS receiver.
  • The clocks are ready for building into the system for displaying unified time.
  • 7-segment superbright LED modules, viewing angle 120°.
  • Aesthetic frame made of anodized aluminum profile.

* To show temperature value, an external temperature sensor is needed. (Sensor is not included with clock delivery.)
