Church psalm hymn displays

NDT series numerical LED displays are designed particularly for displaying psalm and hymn numbers during religious services. They can be used in other applications as versatile remote-controlled numerical displays.

Church psalm hymn displays

Church psalm / song display
NDT 57/3 R – gold frame

Price without VAT: 134.00 €
Price with VAT: 160.80 €

Church psalm / song display
NDT 57/3 R – wood frame

Price without VAT: 146.00 €
Price with VAT: 175.20 €

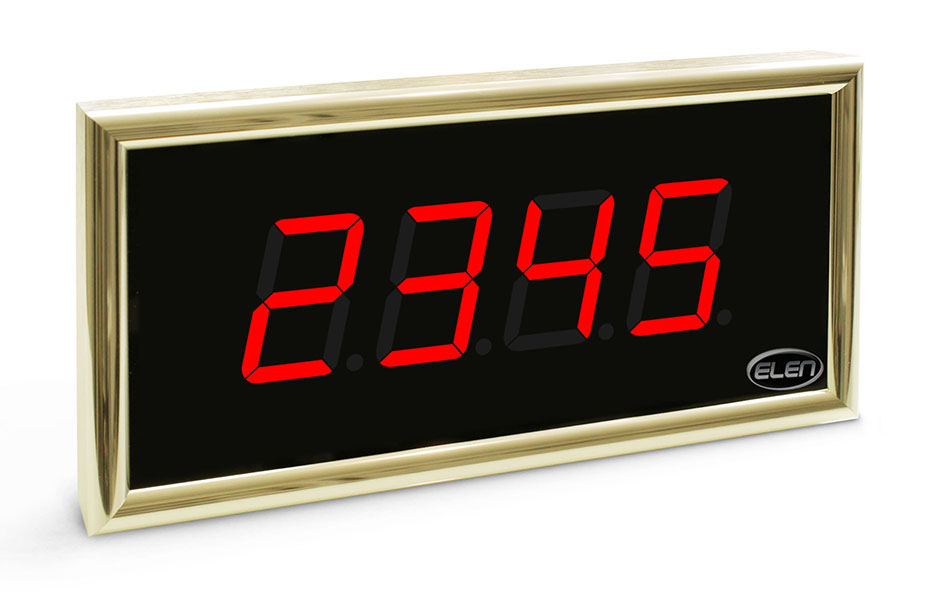

Church psalm / song display
NDT 57/4 R – gold frame

Price without VAT: 150.00 €
Price with VAT: 180.00 €

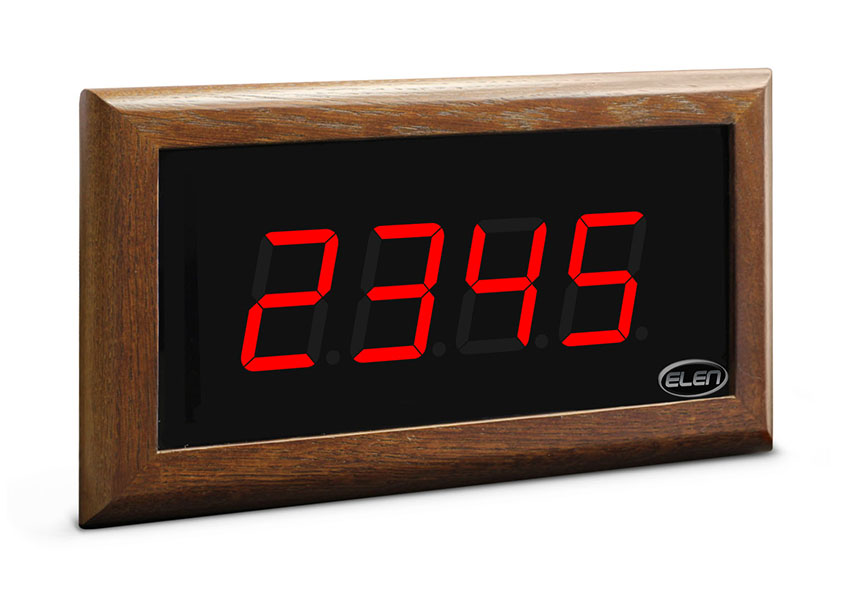

Church psalm / song display
NDT 57/4 R – wood frame

Price without VAT: 163.00 €
Price with VAT: 195.60 €

Church psalm / song display
NDT 100/3 R – gold frame

Price without VAT: 189.00 €
Price with VAT: 226.80 €

Church psalm / song display
NDT 100/3 R – wood frame

Price without VAT: 206.00 €
Price with VAT: 247.20 €

Church psalm / song display
NDT 100/4 R – gold frame

Price without VAT: 217.00 €
Price with VAT: 260.40 €

Church psalm / song display
NDT 100/4 R – wood frame

Price without VAT: 236.00 €
Price with VAT: 283.20 €

Church psalm / song display
NDT 160/3 R – gold frame

Price without VAT: 282.00 €
Price with VAT: 338.40 €

Church psalm / song display
NDT 160/3 R – wood frame

Price without VAT: 282.00 €
Price with VAT: 338.40 €

Church psalm / song display
NDT 160/4 R – gold frame

Price without VAT: 344.00 €
Price with VAT: 412.80 €

Church psalm / song display
NDT 160/4 R – wood frame

Price without VAT: 344.00 €
Price with VAT: 412.80 €

Church display accessories

Remote Control IR

Price without VAT: 13.00 €
Price with VAT: 15.60 €

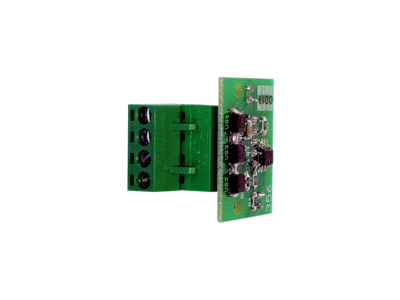

Communication module - RS485

Price without VAT: 20.00 €
Price with VAT: 24.00 €

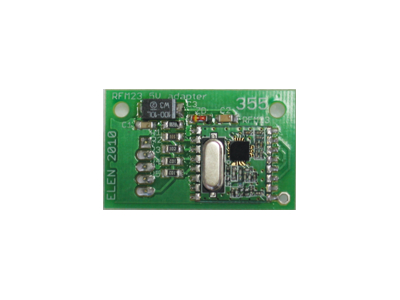

Communication module - wireless, RF

Price without VAT: 35.00 €
Price with VAT: 42.00 €

Church psalm / song control display
NDT 38/3 R

Price without VAT: 103.50 €
Price with VAT: 124.20 €

Church psalm / song control display
NDT 38/4 R

Price without VAT: 114.50 €
Price with VAT: 137.40 €

Features:

  • Wireless control of display with hand-held infrared (IR) control from up to 20 m;
  • Wireless control of display with radio module (RF) and/or control display NDT 38/3 R RF up to 50 m;
  • Direct input of a number (3 to 4 digits, according to display format);
  • Possibility to display some characters of the alphabet (A, b, C, d, E, F, H, P, U, -, space, decimal point);
  • Simple incrementation/decrementation of a number with cursor keys (up/down arrows);
  • Possibility of alternating hymn and verse numbers;
  • Memory for 30 numbers (possibility to prepare the numbers of hymns in advance for the whole service);
  • Simple displaying of numbers stored in the memory with cursor keys (up/down arrows);
  • 2 adjustable brightness levels for day / night mode, switched with a single button;
  • Adjustable period for alternating hymn and a verse numbers (in seconds);
  • Possibility to interconnect up to 32 devices with a 2-wire cable through a serial interface RS485*;
  • Unlimited number of displays controlled via radio RF signal*;
  • *Requires installation of RS485 or RF communication module into display. (Sold as optional accessories.)



The NDT series displays and its accessories were designed with consideration of their usage in simple applications with a single display, or in large-scale systems with several displays. The versatility of the solution allows creating a required final system by gradual extension, not just in terms of the number of connected displays, but also in terms of their control. Good readability in different light conditions is ensured by ability to adjust display brightness (day/night mode).

In the simplest setup, all that is required is a single display and one IR remote control. This setup is suitable for small churches, where the maximum direct distance between display and the operator does not exceed 20 m.

 psalm-hymn-led-display-ir2

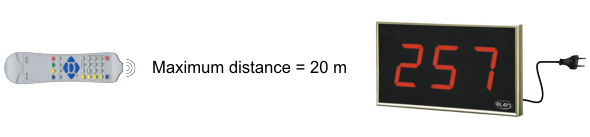

Fig. 1/  The simplest control of a display with an IR remote control from a distance up to 20 m.



In larger churches and cathedrals, where the distance for controlling display is longer, it is possible to take advantage of wireless RF transmission by using a control mini display NDT 38/3 with RF module. Mini control display is controlled with an IR remote control, while ensuring a long data transmission via RF (see figures with possible connection diagrams in a leaflet). This solution simplifies and shortens installation of displays.

  ndt-led-displays-rf

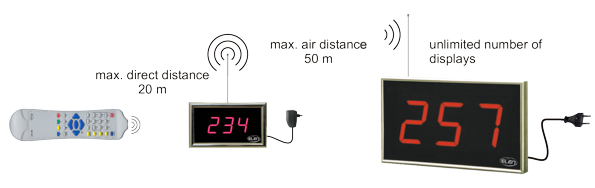

 Fig. 2/     Wireless control of displays with handheld IR remote control and mini-display with RF module.



Displays can be also interconnected with a 2-wire communication line RS485, while any of displays is able to receive control commands from IR remote control. All other displays will show the same information automatically.

ndt-led-displays-wired2

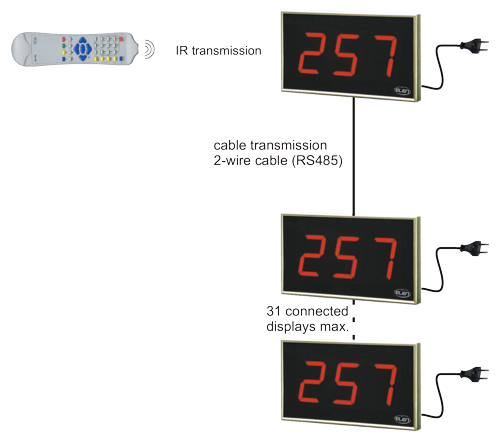

  Fig. 3/     Interconnection of displays via RS485 serial 2-wire cable.



The ELEN company makes strong emphasis on design and workmanship of its products. This is the reason why frames of these displays are made of round aluminum profiles with special surface finish or robust hardwood oak. Aluminum frames are of gold color, but other colors (platinum mat grey, silver, white, black, or other) are also available on special order for extra fee.

Standard accessories:

  • Tilting installation console;
  • Mounting kit (screws + fasteners).

Optional accessories:
