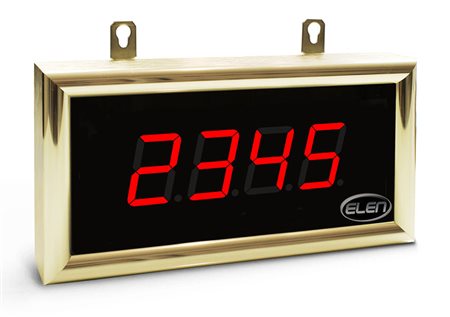

Church psalm / song control display
NDT 38/4 R

Price without VAT: 114.50 €
Price with VAT: 137.40 €

Description

Ordering codeZZ0651-0.00
Digits4
Rows8.8.8.8.
Height of characters38 mm
Type of displaying elementsred
Readability range15 m
Frame colourgold
Controlremote control IR
Communication interfaceIR by standard (wireless RF or 2-wire serial line RS485 modules optional)
Power supplyexternal power supply adapter 230 VAC / 12VDC, 500 mA (included)
Dimensions215 mm x 110 mm x 39 mm
Weight0.7 kg

Application:

The NDT 38/4 LED mini-display is mainly used as control display in wireless RF or wired RS485 configuration of larger displays NDT 100/3 or NDT 57/3  during the church services. Using the optional RF or RS485 module will make it possible to enter desired number into this control mini-display and subsequently this information will be copied into other large displays in the system.

Detailed information:

  • Wireless control from handheld IR controller (up to 20 m range)
  • Wireless control via RF (radio frequency) module (up to 50 m range)
  • Possibility to also show some alphabetical characters (A, b, C, d, E, F, H, P, U, -, space, decimal point)
  • Simple number incrementation/decrementation by 1 using cursor keys (arrow up/down)
  • Switching between displaying verse and strophe numbers
  • Memory for up to 30 numbers (possibility to prepare all psalm numbers ahead)
  • Simple showing of numbers from memory using cursor keys (arrow up/down)
  • 2 settable levels of brightness for day, or night operation
  • The verse and strophe number switching interval can be set by user
  • Possibility to interconnect up to 32 devices with a 2-wire cable through a serial interface RS485*;
  • Unlimited number of displays controlled via radio RF signal*;

Accessories:

Standard accessories:
  • Tilting installation console;
  • Mounting kit (screws + fasteners).
Optional accessories:
  • Handheld IR remote control (up to 20 m);
  • Communication module – wireless RF;
  • Communication module – RS485, serial line (for 2-line cable interconnection).

Psalm display can be controlled and set by a remote control, which you can add to shopping basket as a display accessory. In case that you do not need the remote control (e.g. you are buying additional psalm display and you already own one remote control), please choose option without remote control.

Communication modules are used to send information from the control display NDT 38/3 into other large size displays in the system.

*Requires installation of RS485 or RF communication module into display. (Sold as optional accessories.)
