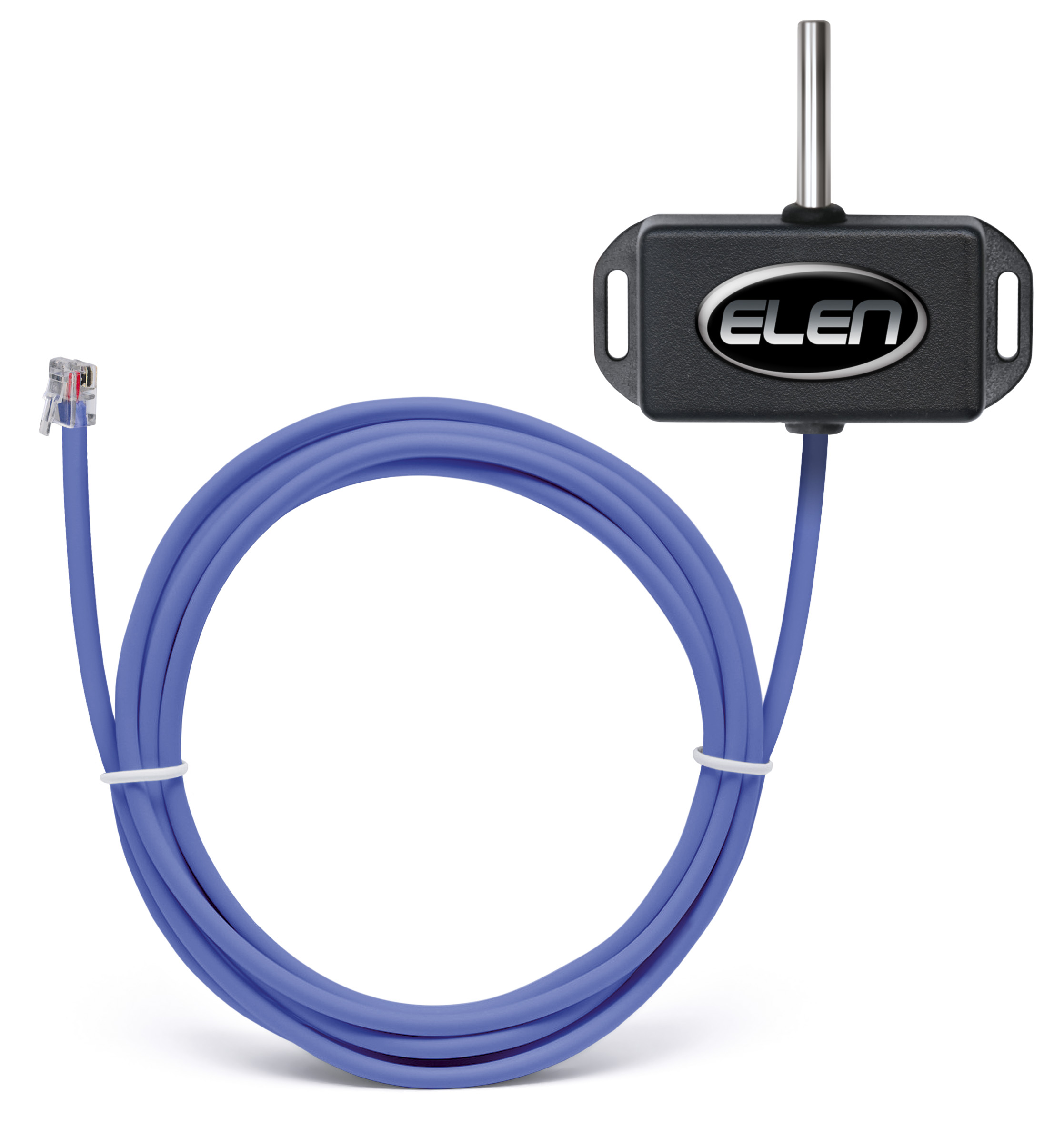

Temperature sensor for digital clocks
NDC 57/x and NDC 100/x

Price without VAT: 39.80 €
Price with VAT: 47.76 €

Description

Ordering codeZZ0535-B.00
 Measured temperature range  -55°C to +120°C
 Communication interface
 1-WIRE
 Power supply
 5 VDC (powered directly from the display)
 Probe dimensions  diameter 6 mm, length 60 mm
 Probe material
 stainless steel
 Box dimensions
 7,6 cm x 3,5 cm x 2,0 cm
 Enclosure protection class  IP 68 (suitable to be used indoor or outdoor)
 Connector
 RJ12
 Cable diameter  4,3 mm
 Cable material  silicon rubber, blue color
 Cable, temperature range  -60°C to +200°C
 Cable length*
 2 m

* It is possible to supply temperature sensor with cable length up to 5 meters max. In case of longer installation distance it is possible to order another version of temperature sensor, RS485 type.
