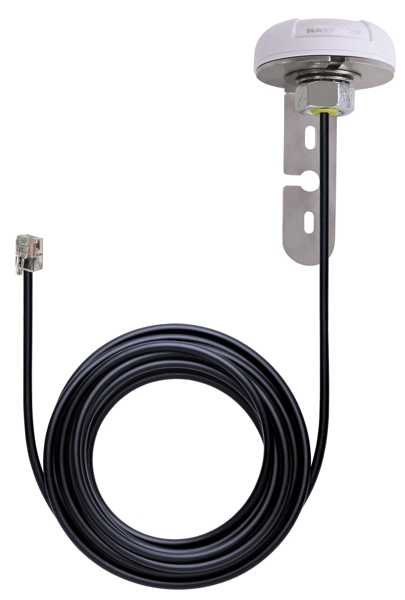

GPS Receiver 67 5DC RS232
u-blox 6 chipset, cable length 5 m,
sensitivity -162 dBm,
RJ12 connector

Price without VAT: 77.20 €
Price with VAT: 92.64 €

Description

Ordering codeZQ0505-0.00
The GPS Receiver 67 5DC RS232 with u-blox 6 SuperSence® chipset.

Specification
• u-blox 6 GPS SuperSense® high performance chipset
• Internal patch antenna
• Frequency: L1, 1575.42 MHz, C/A Code: 1.023 MHz
• Accepts the signals of up to 50 satellites at the same time
• Supports AssistNow Offline (14 days Almanac data)
• Supports AGPS, WAAS, EGNOS and MSAS
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Baud Rate up to 115200
• UP-DATE Rate: up to 5 Hz
• Sensibility max. –162 dBm
• Water-proof housing (IPX7)
• Operating temperature: -20 °C to +60 °C
• Cold start in about 25 sec.
• Hot start in about 1 sec.
• Cable length: 5 m
• Connector: RJ12 (for NDC 57/x and NDC 100/x)
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Dimension: 62 mm x 21 mm

Download

PDF

  1. GPS Time Synchronization Options (PDF)
  2. GPS Receiver 67 5DC RS232 – Connection Diagram and Installation Instructions
    (setup with one NDC clock) (PDF)
