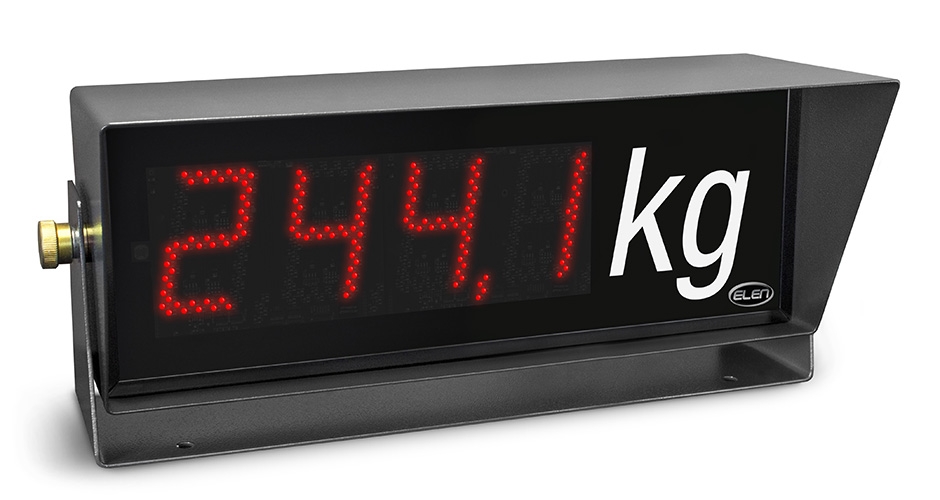

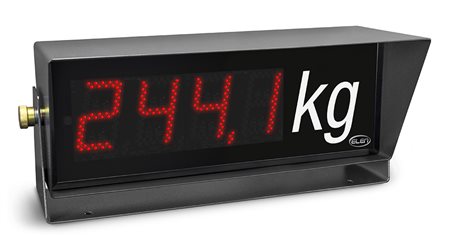

LED displays of the NDI 100/4 R H65 series are used in demanding industrial conditions and are intended for displaying numerical values of various measured physical quantities (weight, temperature, length, speed, etc.).
-
ultrabright eliptical LED elements suitable for outdoor applications;
-
viewing angle 105° horizontally, 45° vertically;
-
robust double-cover frame made of zinc-plated steel sheets;
-
powder paint coated black finish;
-
antiglare front cover made of dim 5 mm thick PMMA Perspex glass;
-
vibration impact reduction by placing all internal electronics on flexible rubber silentblock;
-
industrial grade data and power supply connector ensure reliable electrical connection;
-
floated decimal point;
-
besides standard communication interfaces RS232/RS485 other options are also available – Modbus RTU, Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request;
-
wide range of communication protocols – ELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request;
-
fixed label for units description as per customer request – °C, Kg, t, g, m/s, ot./min, etc.
