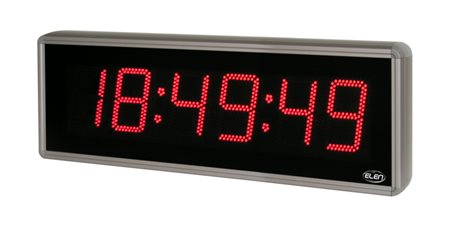

Digital clock for displaying time, date and temperature
NDC 160/6 R

Price without VAT: 963.00 €
Price with VAT: 1,155.60 €

Description

Ordering codeZZ0440-2.00
Digits6
Number formatHOD:MIN:SEC, DD:MM:YY, 88:88:88
LED typehigh brightness LED diodes, AlInGaP type, suitable for outdoors light conditions
Height of characters160 mm
Type of displaying elementsred
Readability range70 m
Frame colouranodized aluminum, grey color
Controlremote control IR, or GPS module (optional accessories)
Inputs / Outputstemperature sensor, RS485 for external GPS module
Class of protectionIP54
Power supply230 VAC
Power consumption16 W max.
Dimensions990 x 340 x 110 mm
Weight17,2 kg

Application:

The NDC 160/6 R digital clocks are used for displaying time, date and temperature. Their robust design makes them suitable to be used in demanding outdoor, or industrial indoor applications such as outside walls of public institutions, city centers, railway, or bus stations, production plants, etc. The superbright LED elements ensure good visibility even under direct sunlight conditions. For setting the clock parameters (time, date, switching period, brightness, …), an IR remote control is necessary. It can be ordered separately, please see link below.

Detailed information:

  • Digital clock display which can display time, date and temperature
  • Time/Date format HH:MM:SS / DD:MM:SS
  • Information can be shown in the intervals of 0-99 sec
  • Wireless setup using IR remote control, or automatically using a GPS receiver
  • 7-segment modules made of superbright LED elements, long lifetime AlInGaP type chips
  • Double case protection - internal steel frame and outside aluminum profiles
