Air temperature and humidity sensor –
THS SENSOR 40 PoE LAN

Description

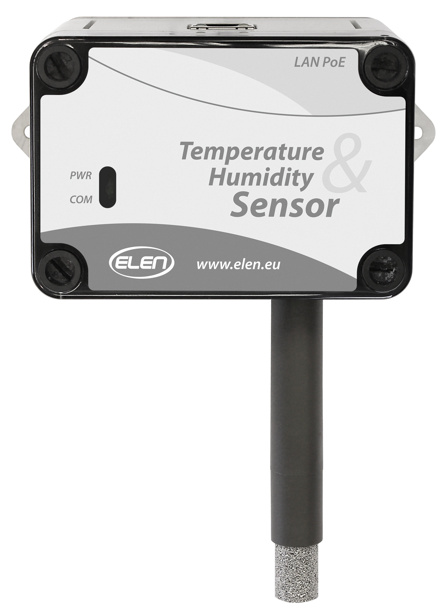

The THS SENSOR 40 PoE LAN is an air temperature and humidity sensor with Ethernet PoE LAN interface for transmitting the measured values to a master device. It can be used in computer controlled measurement systems or as a peripheral device to a large-size LED display, which displays the measured values.

Technical Specifications

 Sensor type  Sensirion SHT31-DIS
 Temperature range
 –40 °C to +80 °C
 Typical temperature accuracy
 ±0,3 °C (±0,2 °C for T>0 °C)
 Relative humidity range
 0 to 100% RH
 Typical relative humidity accuracy
 ±2% RH
 Communication interface
 Ethernet 10/100BASE-TX PoE, IEEE 802.3af
 Communication protocol
 Modbus TCP, TCP/IP (ASCII)
 Port connector
 RJ45 (LAN cable included, 2 m)
 Software for data logging on PC available
 Environment of use
 interior (IP 40)
 Power supply
 PoE (Power over Ethernet)
 Compatible with LED displays ELEN, NDA series.


Download

Datasheet (PDF)

Application Diagrams

The following are some possible applications of large size temperature / humidity displays with internal or external temperature and humidity sensors.
Depending on communication interface, these devices can be used as stand-alone or in a RS485, LAN, or LAN PoE network system.


LED display with external temperature and humidity sensor

nda_schemy_web-2


LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-3


RS485 network, LED display with external temperature and humidity sensor

nda_schemy_web-4


RS485 network, LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-5


LAN Ethernet network, LED display with external temperature and humidity sensor

nda_schemy_web-6


LAN Ethernet network, LED display with internal temperature and humidity sensor

nda_schemy_web-7


LAN Ethernet network, LED displays and external temperature and humidity sensors

nda_schemy_web-8


Possible network connections, including sensors and displays with PoE LAN interface

nda_schemy_web-9


Color Temperature Function
LED color of displayed value
gradually changes depending on the measured temperature and humidity.

(Valid for displays with color LEDs only.)

nda_schemy_web-1
