Air temperature and humidity sensor –
THS SENSOR 40 12DC LAN

Description

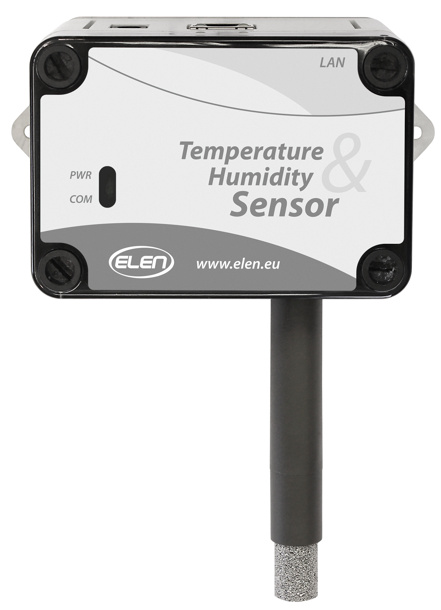

The THS SENSOR 40 12DC LAN is an air temperature and humidity sensor with Ethernet LAN interface for transmitting the measured values to a master device. It can be used in computer controlled measurement systems or as a peripheral device to a large-size LED display, which displays the measured values.

Technical Specifications

 Sensor type  Sensirion SHT31-DIS
 Temperature range
 –40 °C to +80 °C
 Typical temperature accuracy
 ±0,3 °C (±0,2 °C for T>0 °C)
 Relative humidity range
 0 to 100% RH
 Typical relative humidity accuracy
 ±2% RH
 Communication interface
 Ethernet 10/100BASE-TX, IEEE 802.3
 Communication protocol
 Modbus TCP, TCP/IP (ASCII)
 Port connector
 RJ45 (LAN cable included, 2 m)
 Software for data logging on PC available
 Environment of use
 interior (IP 40)
 Power supply
 power supply adapter 12 VDC/500 mA
 (included)
 Compatible with LED displays ELEN, NDA series.


Download

Datasheet (PDF)

Application Diagrams

The following are some possible applications of large size temperature / humidity displays with internal or external temperature and humidity sensors.
Depending on communication interface, these devices can be used as stand-alone or in a RS485, LAN, or LAN PoE network system.


LED display with external temperature and humidity sensor

nda_schemy_web-2


LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-3


RS485 network, LED display with external temperature and humidity sensor

nda_schemy_web-4


RS485 network, LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-5


LAN Ethernet network, LED display with external temperature and humidity sensor

nda_schemy_web-6


LAN Ethernet network, LED display with internal temperature and humidity sensor

nda_schemy_web-7


LAN Ethernet network, LED displays and external temperature and humidity sensors

nda_schemy_web-8


Possible network connections, including sensors and displays with PoE LAN interface

nda_schemy_web-9


Color Temperature Function
LED color of displayed value
gradually changes depending on the measured temperature and humidity.

(Valid for displays with color LEDs only.)

nda_schemy_web-1
