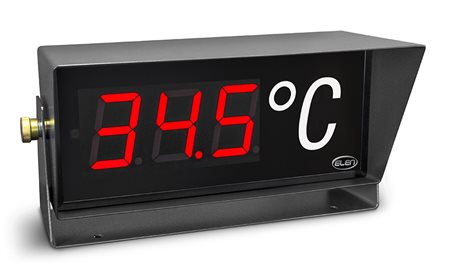

Industrial LED display NDI 100/3 R L65

Description

Ordering codeZZ0300-D.00
Digits3
Number format8.8.8.
LED type7-segment ultrabright LED elements, viewing angle 120°
Height of characters100 mm
Type of displaying elementsred
Readability range40 m
Frame colourblack
Frame typesteel frame, zinc plated and powder paint coated
Class of protectionIP 65
Communication interfaceserial line RS485 or RS232 with galvanic separation;
other options: Profibus DP, Ethernet TCP/IP, BCD 24V, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, counter input) and others on request
Communication protocolELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F),
Profibus DP, Intecont plus, Orbit Controls, LonTalk and others on request
Power supply110/230 VAC, 50 Hz
Dimensions767 mm x 220 mm x 313 mm (please see datasheet)
Weight13.4 kg

Application:

LED displays of the NDI 100/3 R L65 series are used in demanding indoor industrial conditions and are intended for displaying numerical values of various measured physical quantities (weight, temperature, length, speed, etc.)

Detailed information:

  • 7-segment ultrabright LED elements, viewing angle 120°.
  • Robust double-cover frame made of zinc-plated steel sheets.
  • Powder paint coated black finish.
  • Antiglare front cover made of dim 5 mm thick PMMA Perspex glass.
  • Vibration impact reduction by placing all internal electronics on flexible rubber silentblock.
  • Industrial grade data and power supply connector ensure reliable electrical connection.
  • Floated decimal point.
  • Besides standard communication interfaces RS232 / RS485 other options are also available - Modbus RTU, Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request
  • Wide range of communication protocols - ELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request
  • Fixed label for units description as per customer request - °C, Kg, t, g, m/s, ot./min, etc.
