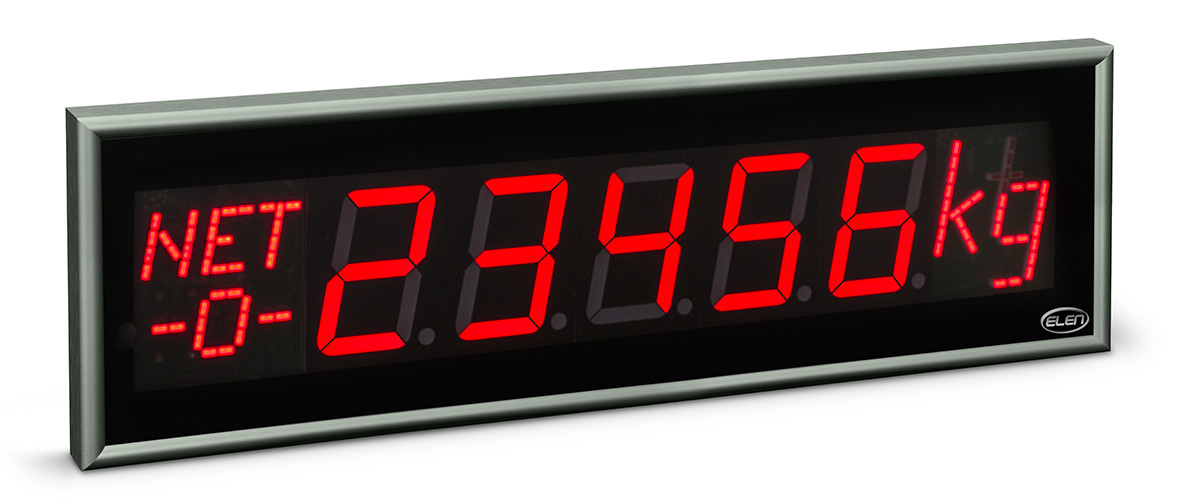

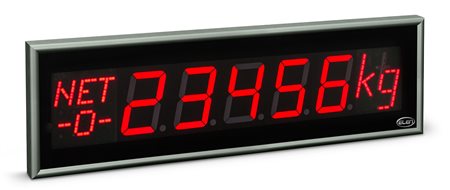

Weighing industrial display NDE 100/5 W R

Ask for price quotation

Description

Digits5
Number format8.8.8.8.8.
LED type7-segment ultrabright LED elements, viewing angle 120°
Special charactersNET, -0-, t, kg, g
Height of characters100 mm
Type of displaying elementsred
Readability range40 m
Inputs / OutputsPower supply cable fixed to back panel of display via cable gland, 2 m length;
Simple data connector terminal block, screw in type
Frame typeaesthetic anodized aluminum frame
Class of protectionIP 20
Communication interfaceserial line RS485 or RS232 with galvanic separation;
other options: Profibus DP, Ethernet TCP/IP, BCD 24V, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, counter input) and others on request
Communication protocolELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F),
Profibus DP, Intecont plus, Orbit Controls, LonTalk and others upon request
Power supply110/230 VAC, 50 Hz
Dimensions740 mm x 210 mm x 76 mm
Weight5,2 kg

Application:

Weighing LED displays of the NDE 100/5 W R series are intended for displaying numerical values of measured weight values in light industrial or office environment. In comparison with NDI and NDU displays it has less robust mechanical housing without antireflective front glass and industrial grade connectors. Its advantage is lower cost, so it is more suitable for less demanding applications when budget is tight.

Displaying of statuses in weighing applications:

Displaying of units
 g, kg, t
Net weight
 Indicated by NET on display
Stable zero reading
 Indicated by -0- on display
Unstable weight
 Blinking weight unit
Stable weight
 Stable reading, weight unit not blinking
Tare  Blinking symbol NET
Overflow
 Indicated by out on display
Control unit error
 Indicated by Err on display
Overrun of maximal preset value
 Indicated by ooo on display


Detailed information:

  • 7-segment ultrabright LED elements, viewing angle 120°.
  • Aesthetic anodized aluminum frame - platinum colour.
  • Powder paint coated black finish internal sheetmetal panel.
  • Tinted brown or grey front glass, 3 mm thick (not antireflective).
  • Simple data connector terminal block, screw in type.
  • Power supply cable fixed to back panel of display via cable gland.
  • Floated decimal point.
  • Besides standard communication interfaces RS232 / RS485 other options are also available - Modbus RTU, Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request.
  • Wide range of communication protocols - ELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request.
  • Special characters (NET, -0-, t, kg, g) made out of superbright red LED bars.
