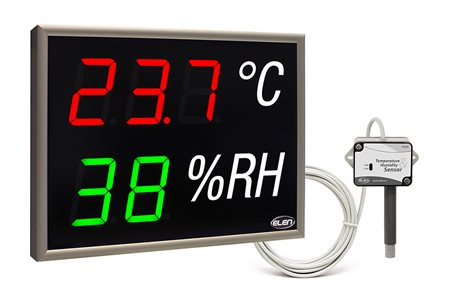

Air temperature and humidity LED display with external sensor -
NDA 100/3-2 TH RG L20 230AC RS485

Description

Ordering codeZZ0905-4.xx
DigitsTemperature – 3
Humidity – 2
LED typeSuper bright 7-segment LED modules, viewing angle 120°
Height of characters100 mm
Type of displaying elementsTemperature – Red/Green/Yellow
Humidity – Red/Green/Yellow
Readability range40 m
Frame colourMatt warm grey
Inputs / Outputs1x RS485 – external temperature and humidity sensor
1x USB type B – connector for configuration settings
1x RS485 – connector for data logging to PC
Frame typeAesthetic anodized aluminium / Non-glare, grey colour tinted PMMA glass
Class of protectionIP 20, indoor use only
Power supply100-240V~, power supply cable with 2-pole EU plug, length 2 m
Power consumption13 W Max.
Dimensions470 mm x 350 mm x 59 mm
Weight4.5 kg

The NDA 100/3-2 TH RG L20 230AC RS485 is an electronic monitoring device which displays air temperature and humidity on a large format. It is suitable for use in indoor environment (public institutions, banks, bus and railway stations, airports, schools, offices, hotels, restaurants, etc.).

Its enclosure consists of aesthetic anodized aluminum frame, non-glare front cover glass and steel back panel. Excellent readability is ensured by super-bright 7-segment LED modules with a wide viewing angle.

External temperature and humidity sensor connects to display with cable via serial RS485 inerface.

Display is equiped with RS485 interface for connecting to PC and data logging of measured values.
Power supply cable is attached from the back side.
