Air temperature and humidity LED display -
NDA 100/3-2 TH RG L20 230AC LAN

Description

Ordering codeZZ0905-6.xx
DigitsTemperature – 3
Humidity – 2
LED typeSuper bright 7-segment LED modules, viewing angle 120°
Height of characters100 mm
Type of displaying elementsTemperature – Red/Green/Yellow
Humidity – Red/Green/Yellow
Readability range40 m
Frame colourMatt warm grey
Inputs / Outputs1x RS485 – external temperature and humidity sensor
1x USB type B – connector for configuration settings
1x LAN – Ethernet TCP/IP
Frame typeAesthetic anodized aluminium / Non-glare, grey colour tinted PMMA glass
Class of protectionIP 20, indoor use only
Power supply100-240V~, power supply cable with 2-pole EU plug, length 2 m
Power consumption13 W Max.
Dimensions470 mm x 350 mm x 59 mm
Weight4.5 kg

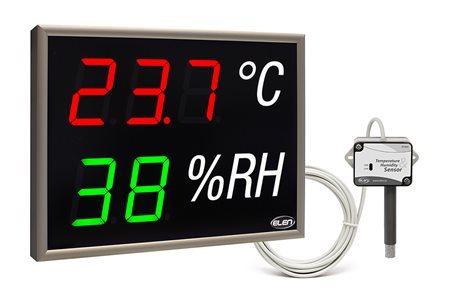

The NDA 100/3-2 TH RG L20 230AC LAN is an electronic monitoring device which displays air temperature and humidity on a large format. It is suitable for use in indoor environment (public institutions, banks, bus and railway stations, airports, schools, offices, hotels, restaurants, etc.).

Its enclosure consists of aesthetic anodized aluminum frame, non-glare front cover glass and steel back panel. Excellent readability is ensured by super-bright 7-segment LED modules with a wide viewing angle.

External temperature and humidity sensor connects to display with cable via serial RS485 inerface.

Display is equiped with Ethernet TCP/IP interface for connecting to LAN network and data logging of measured values. Power supply cable is attached from the back side.

Application Diagrams

The following are some possible applications of large size temperature / humidity displays with internal or external temperature and humidity sensors.
Depending on communication interface, these devices can be used as stand-alone or in a RS485, LAN, or LAN PoE network system.


LED display with external temperature and humidity sensor

nda_schemy_web-2


LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-3


RS485 network, LED display with external temperature and humidity sensor

nda_schemy_web-4


RS485 network, LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-5


LAN Ethernet network, LED display with external temperature and humidity sensor

nda_schemy_web-6


LAN Ethernet network, LED display with internal temperature and humidity sensor

nda_schemy_web-7


LAN Ethernet network, LED displays and external temperature and humidity sensors

nda_schemy_web-8


Possible network connections, including sensors and displays with PoE LAN interface

nda_schemy_web-9


Color Temperature Function
LED color of displayed value
gradually changes depending on the measured temperature and humidity.

(Valid for displays with color LEDs only.)

nda_schemy_web-1
