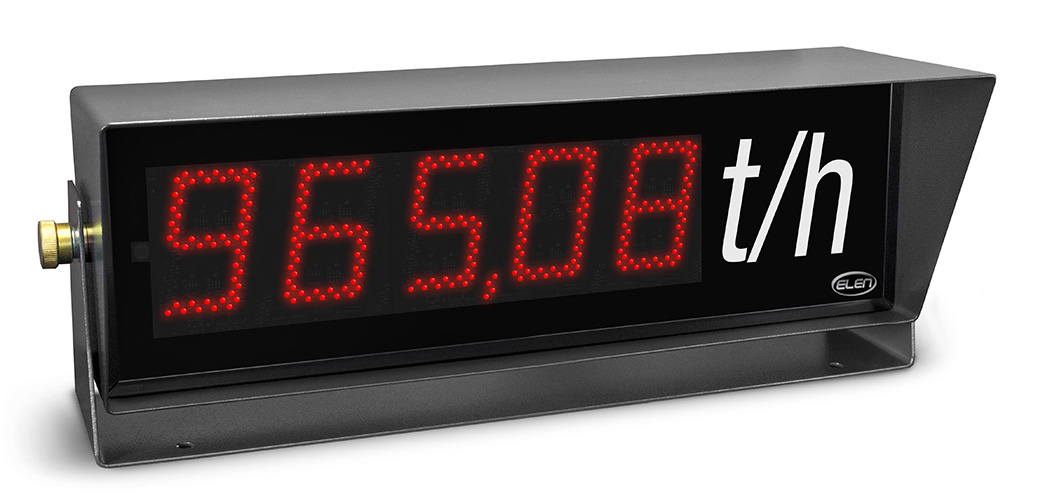

Industrial LED display NDI 100/5 R H65

Ask for price quotation

Description

Ordering codeZZ0363-B.00
Digits5
Number format8.8.8.8.8.
LED typeultrabright eliptical LED elements, viewing angle 105/45°, suitable for outdoor light conditions
Height of characters100 mm
Type of displaying elementsred
Readability range40 m
Frame colourblack
Frame typesteel frame, zinc plated and powder paint coated
Class of protectionIP 65
Communication interfaceserial line RS485 or RS232 with galvanic separation;
other options: Profibus DP, Ethernet TCP/IP, BCD 24V, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, counter input) and others on request
Communication protocolELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request
Power supply110/230 VAC, 50 Hz
Dimensions767 x 220 x 313
Weight16,1 kg

Application:

LED displays of the NDI 100/5 R H65 series are used in demanding industrial conditions and are intended for displaying numerical values of various measured physical quantities (weight, temperature, length, speed, etc.)

Detailed information:

  • Ultrabright eliptical LED elements suitable for outdoor applications.
  • Viewing angle 105° horizontally, 45° vertically.
  • Robust double-cover frame made of zinc-plated steel sheets.
  • Powder paint coated black finish.
  • Antiglare front cover made of dim 5 mm thick PMMA Perspex glass.
  • Vibration impact reduction by placing all internal electronics on flexible rubber silentblock.
  • Industrial grade data and power supply connector ensure reliable electrical connection.
  • Floated decimal point.
  • Besides standard communication interfaces RS232 / RS485 other options are also available - Modbus RTU, Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request
  • Wide range of communication protocols - ELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request
  • Fixed label for units description as per customer request - °C, Kg, t, g, m/s, ot./min, etc.
