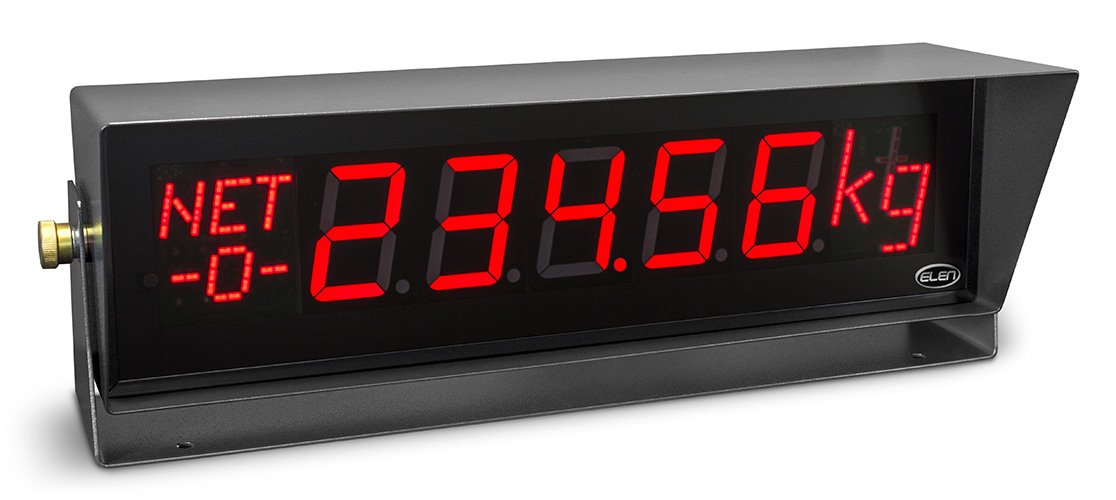

Weighing industrial display NDI 100/5 W R


Ordering codeZZ0297-G.00
Number format8.
LED type7-segment ultrabright LED elements, viewing angle 120°
Special charactersNET, -0-, t, kg, g
Height of characters100 mm
Type of displaying elementsred
Readability range40 m
Frame colourblack
Frame typesteel frame, zinc plated and powder paint coated
Class of protectionIP 65
Communication interfaceRS 232 / RS 485
Communication protocolELEN, Schenck, Disomat, ...
Power supply110/230 VAC, 50 Hz
Dimensions823 x 220 x 313
Weight18,8 kg


Weighing LED displays of the NDI 100/5 W R series are used in demanding industrial conditions and are intended for displaying numerical values of measured weight values.

Detailed information:

  • 7-segment ultrabright LED elements, viewing angle 120°.
  • Robust double-cover frame made of zinc-plated steel sheets.
  • Powder paint coated black finish.
  • Antiglare front cover made of dim 5 mm thick PMMA Perspex glass.
  • Vibration impact reduction by placing all internal electronics on flexible rubber silentblock.
  • Industrial grade data and power supply connector ensure reliable electrical connection.
  • Floated decimal point.
  • Besides standard communication interfaces RS232 / RS485 other options are also available - Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request
  • Wide range of communication protocols - ELEN, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request
  • Special characters (NET, -0-, t, kg, g) made out of superbright red LED bars.
