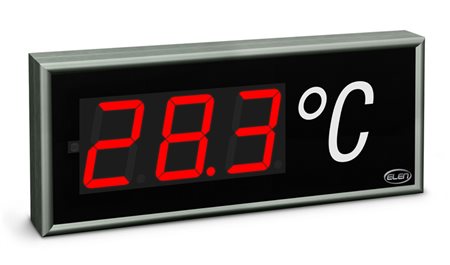

Universal numeric LED display NDU 100/3 R

Description

Ordering codeZZ0325-C.00
Digits3
Number format8.8.8.
LED type7-segment ultrabright LED elements, viewing angle 120°
Height of characters100 mm
Type of displaying elementsred or yellow
Readability range40 m
Frame colourplatinum matt
Frame typeaesthetic anodized aluminum frame
Class of protectionIP 52
Communication interfaceserial line RS485 or RS232 with galvanic separation;
other options: Profibus DP, Ethernet TCP/IP, BCD 24V, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, counter input) and others on request
Communication protocolELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request
Power supply110/230 VAC, 50 Hz
Power consumption8,3 W
Dimensions510 x 220 x 135
Weight5,2 kg

Display Application:

LED displays of the NDU 100/3 R series are used in light industrial conditions and are intended for displaying numerical values of various measured physical quantities (weight, temperature, length, speed, etc.)

Detailed information:

  • 7-segment ultrabright LED elements, viewing angle 120°.
  • Aesthetic anodized aluminum frame - platinum colour.
  • Powder paint coated black finish internal sheetmetal panel.
  • Antiglare front cover made of dim 5 mm thick PMMA Perspex glass.
  • Industrial grade data and power supply connector ensure reliable electrical connection.
  • Floated decimal point.
  • Besides standard communication interfaces RS232 / RS485 other options are also available - Modbus RTU, Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request
  • Wide range of communication protocols - ELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request
  • Fixed label for units description as per customer request - °C, Kg, t, g, m/s, ot./min, pcs., etc.
