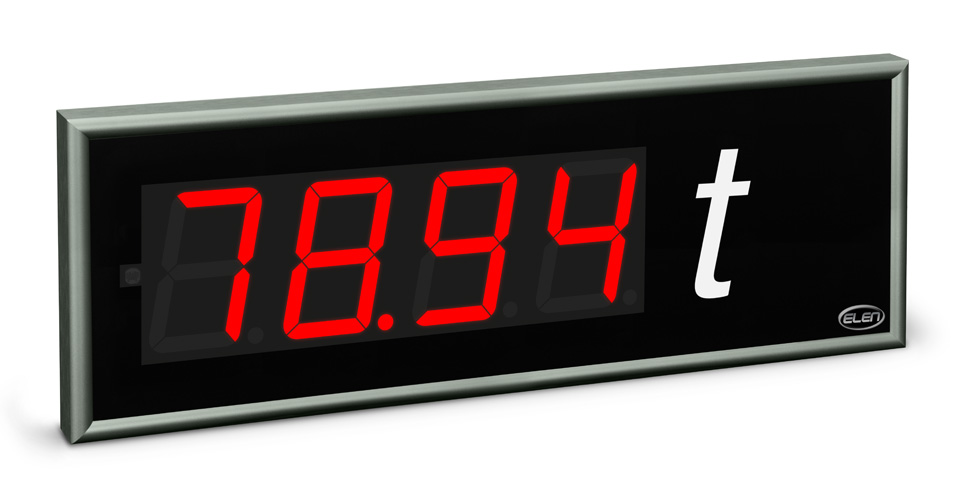

Universal numeric LED display NDE 100/4 R

Description

Digits4
Number format8.8.8.8.
LED type7-segment ultrabright LED elements, viewing angle 120°
Height of characters100 mm
Type of displaying elementsred
Readability range40 m
Frame colourplatinum matt
Frame typeaesthetic anodized aluminum frame
Class of protectionIP 20
Communication interfaceserial line RS485 or RS232 with galvanic separation;
other options: Profibus DP, Ethernet TCP/IP, BCD 24V, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, counter input) and others on request
Communication protocolELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F),
Intecont plus, Orbit Controls, LonTalk and others upon request
Power supply110/230 VAC, 50 Hz

Display Application:

LED displays of the NDE 100/4 R series are intended for displaying numerical values of various measured physical quantities (weight, temperature, length, speed, etc.) in light industrial or office environment. In comparison with NDI and NDU displays it has less robust mechanical housing without antireflective front glass and industrial grade connectors. Its advantage is lower cost, so it is more suitable for less demanding applications when budget is tight.

Detailed information:

  • 7-segment ultrabright LED elements, viewing angle 120°.
  • Aesthetic anodized aluminum frame - platinum colour.
  • Powder paint coated black finish internal sheetmetal panel.
  • Tinted brown or grey front glass, 3 mm thick (not antireflective).
  • Simple data connector terminal block, screw in type.
  • Power supply cable fixed to back panel of display via cable gland.
  • Floated decimal point.
  • Besides standard communication interfaces RS232 / RS485 other options are also available - Modbus RTU, Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request.
  • Wide range of communication protocols - ELEN, Modbus RTU, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request.
  • Fixed label for units description as per customer request - °C, Kg, t, g, m/s, ot./min, pcs., etc.
