Digital clocks for displaying time, date, temperature and humidity -
NDC 100/6 THS R L20 12DC USB
-interface USB

Price without VAT: 366.00 €
Price with VAT: 439.20 €

Ordering code: ZZ0933-3.00

Description

Product Description and Application

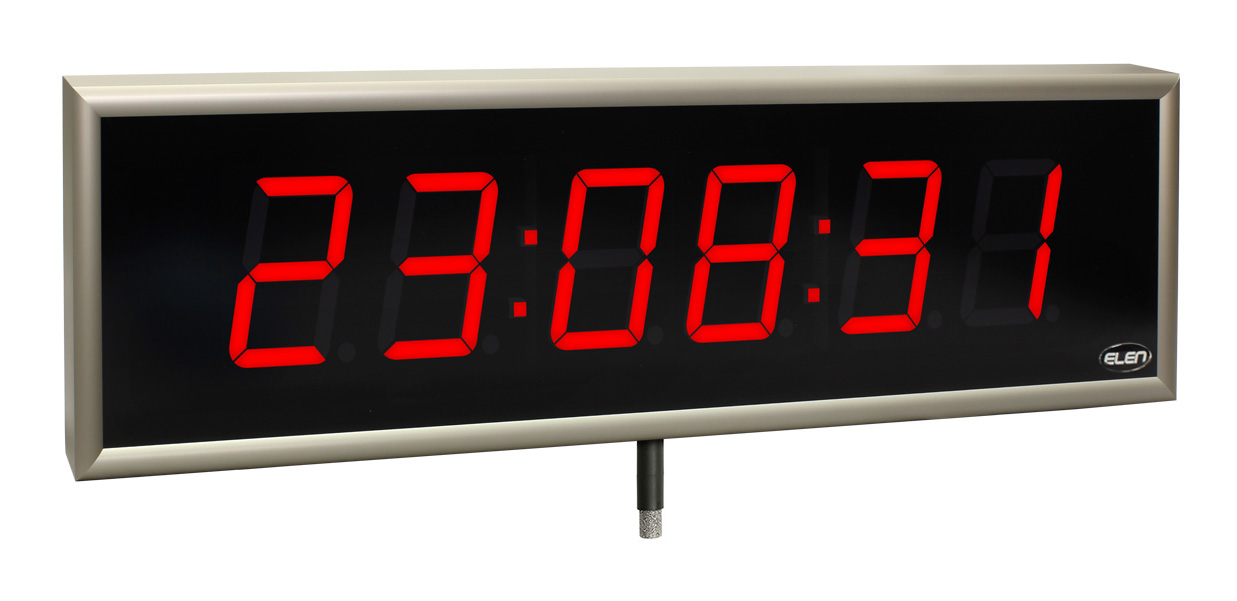

The NDC 100/6 THS R L20 12DC USB series digital LED wall clocks are electronic devices which display the current time, date, temperature and relative humidity information. It can also be set and used as a stopwatch or countdown, count-up counter/timer.

The clock is especially suitable for use in modern interiors of various public institutions, offices, railway and bus stations, airports, hospitals, shopping centers, banks, production plants and many other places, where its installation provides an aesthetic and practical add-on.

All clock‘s parameters, e.g. time, date, stopwatch, countdown, brightness, the type and duration of displayed information, etc., can be set with an IR remote control, or via USB connection with PC and special software application NDC_config.

During their construction the maximum emphasis was placed on high functional reliability and aesthetic appearance. High-brightness 7-segment LED modules and a dark cover glass with an anti-reflective coating ensure good readability and a wide viewing angle. The brightness level can be controlled automatically, depending on the ambient lighting conditions, or manually, according to the user's preference.

Installation is easy, the clock is supplied with a wall hanging bracket, power supply adapter 230VAC / 12VDC and installation instructions.

Main Features

  • Digit height 100 mm, readability up to 40 m.
  • Format: HH:MM:SS (hours : minutes: seconds), DD:MM:SS (day : month : year), X.XX°C (temperature) and XX rH (relative air humidity in %RH)
  • Displaying TIME, DATE, TEMPERATURE, HUMIDITY, (stopwatch, countdown/up counter).
  • High brightness LED modules with wide viewing angle 120°.
  • Alternating of displayed information and its duration can be set from 0 to 99 sec.
  • Automatic or manual LED brightness control (built-in light sensor).
  • Stylish frame made of anodized aluminum profile.
  • Tinted acrylic glass with non-glare surface.
  • Wireless setup using IR remote control or wired setup via USB connection with PC.
  • PC software application for setting displayed information and clock functions.
  • Can be set as Count-up or Count-down timer/counter (with optional trigger input and Relay switch output).
  • Built-in time scheduler for triggering alarm events, e.g. time breaks, work shifts (with optional Relay output).

Standard Accessories – included with display delivery

  • Temperature and humidity sensor:
          - Internal, plug-in sensor: THS Sensor 40 3,3DC I2C.
  • Power supply adapter 230 VAC/ 12 VDC, 2 A.
  • Wall mounting bracket with screws and fasteners.
  • Installation instructions and user manual.
  • Optional Accessories – ordered separately, as needed

    • Remote control IR:
            - At least 1 pc. is necessary to be purchased with the clock.
            - In case of purchasing more clocks, only one remote is needed.
    • Relay voltage-free contact switch:
            – Can be used for triggering external device (e.g. acoustic or light alarm).
    • Counter/timer trigger input:
            – Used for triggering counter or timer events (e.g. countdown, count-up, stopwatch).

Download

Datasheet (PDF)
