Text message display –
TDU 76-16/192 RG L54 230AC

Description

Ordering codeZZ0643
Rows1 for full height font or 2 when using small height font
LED matrix per row16 x 192 dots
Characters in a row16 – 18, depending on the type of font used
(more characters are possible using smaller font, or double-line font)
LED typehigh-brightness AlInGaP dot matrix LED modules,
suitable for indoor light conditions
Height of characters76 mm (when using single line font)
Type of displaying elementsred, green and orange (by combination)
Readability rangeabout 40 m max.
Frame colourplatinum matt or silver gray
Frame typedouble frame construction –
internal steel frame tube with black powder paint coating
and external aesthetic aluminum frame
Class of protectionIP 54 (IP 20 version is also possible)
Communication interfaceserial RS232, RS485 with galvanic separation, Ethernet TCP/IP,
Profibus DP, LonWorks FTT-10A, parallel, and others on request
Communication protocolELEN, Profibus DP, TCP/IP, LonTalk, and others on request
Power supply230 VAC, 50 Hz (others on request, e.g. 24 VDC, ...)
Dimensions1 000 mm x 205 mm x 76 mm
Weight8.5 kg

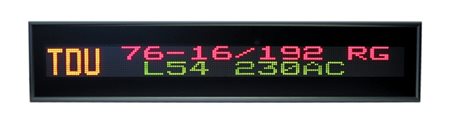

TDU 76-16/192 RG L54 230AC series alphanumeric displays are programmable electronic devices for displaying static or moving textual information.

These displays are manufactured with high-brightness AlInGaP dot matrix LED modules, which ensure their good displaying properties and long lifetime. The mechanical design and LED matrix used makes them suitable to be used in industrial indoor environment.

Standard PC software application for creating and programming text messages into display included with display delivery. In case of integration into customer’s existing project, the communication protocol description can be provided (e.g. for programming the PLC control unit).

Display can be mounted from top ceiling or on the wall using a tilting console.
