Großanzeige für Temperatur und relative Feuchte

Would you like to know what is the temperature and humidity in your office, warehouse, production, public areas, etc.? Our large size wall temperature and humidity NDA series LED displays will provide this information in a well readable format. Besides large-size LED displays you can choose from a selection of temperature and humidity sensors as well. These sensors can be connected to large size LED displays or used as stand-alone devices. Available are various connection communication interfaces: USB, industrial serial line RS485, LAN Ethernet TCP/IP, or PoE (Power over Ethernet) network. Data logging software DataLoggerTH is also available to monitor and store measured values to PC. These products can be also integrated into modern building management systems using Modbus communication protocol.

Überwachung der Temperatur und relative Feuchte anzeigen und sensoren

Application Diagrams

The following are some possible applications of large size temperature / humidity displays with internal or external temperature and humidity sensors.
Depending on communication interface, these devices can be used as stand-alone or in a RS485, LAN, or LAN PoE network system.

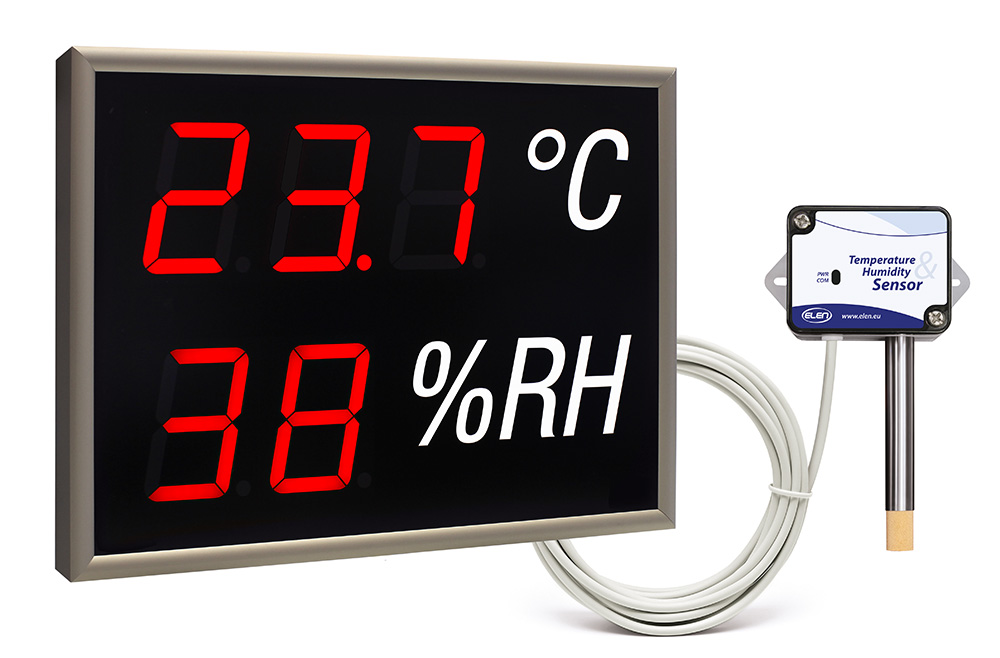

LED display with external temperature and humidity sensor

nda_schemy_web-2

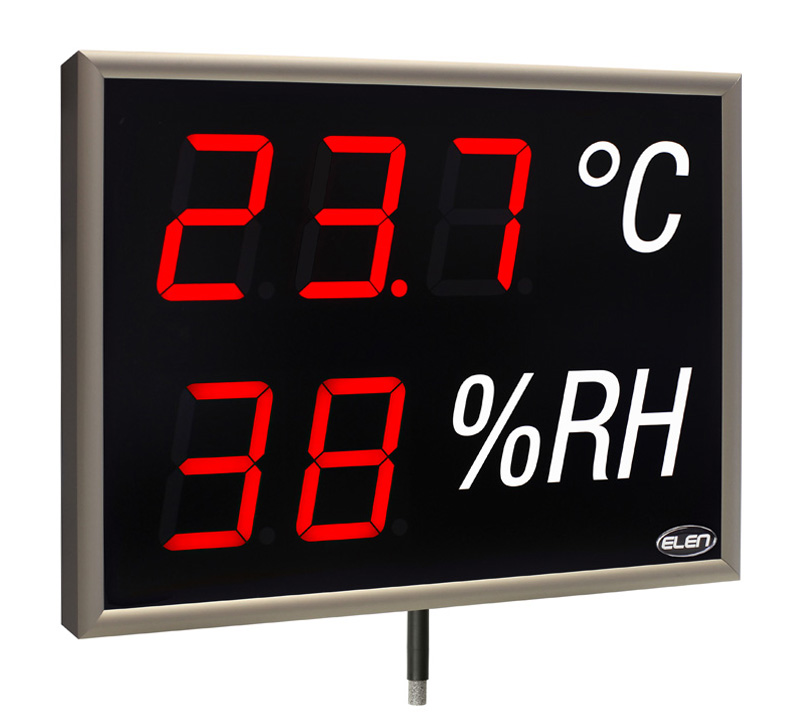

LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-3


RS485 network, LED display with external temperature and humidity sensor

nda_schemy_web-4


RS485 network, LED display with internal (plug-in) temperature and humidity sensor

nda_schemy_web-5


LAN Ethernet network, LED display with external temperature and humidity sensor

nda_schemy_web-6


LAN Ethernet network, LED display with internal temperature and humidity sensor

nda_schemy_web-7


LAN Ethernet network, LED displays and external temperature and humidity sensors

nda_schemy_web-8


Possible network connections, including sensors and displays with PoE LAN interface

nda_schemy_web-9

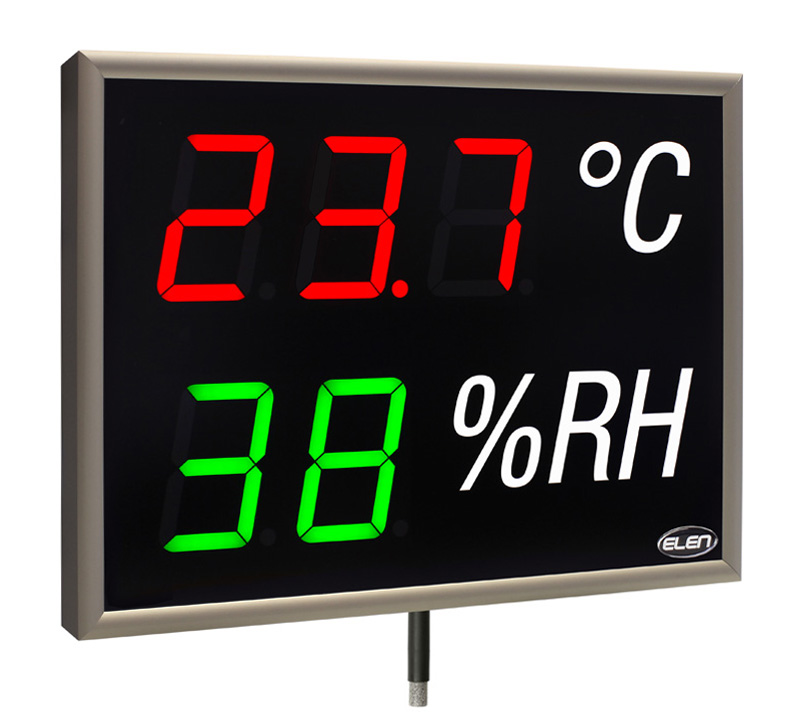

Color Temperature Function
LED color of displayed value
gradually changes depending on the measured temperature and humidity.

(Valid for displays with color LEDs only.)

nda_schemy_web-1

Our temperature and humidity LED displays comply with the R.D. 1826/2009 regulation.
