LED Großanzeige Thermometer und Hygrometer mit Sensor -
NDA 100/3-2 THS R L20 230AC USB

Preis ohne MwSt: 276,00 €
Preis inkl. gesetzl: 331,20 €

Beschreibung

BestellnummerZZ0905-1.xx
ZeichenanzahlTemperature – 3
Humidity – 2
LED-ElementeSuper bright 7-segment LED modules, viewing angle 120°
Zeichenhöhe100 mm
LED ZeichenfarbeTemperature – Red
Humidity – Red
Leseentfernung40 m
EinbaurahmenfarbeMatt warm grey
Kommunikations - Eingänge/ Ausgänge1x USB type B – connector for data logging to PC
GehäusetypenAesthetic anodized aluminium / Non-glare, grey colour tinted PMMA glass
SchutzartIP 20, indoor use only
Stromversorgung100-240V~, power supply cable with 2-pole EU plug, length 2 m
Energieverbrauch13 W max.
Abmessungen470 mm x 350 mm (417 mm) x 59 mm (see drawing on second page of datasheet)
Gewicht4,5 kg

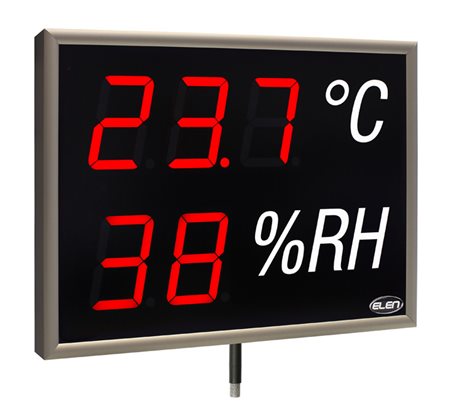

The NDA 100/3-2 THS R L20 230AC USB is an electronic monitoring device which measures and displays air temperature and humidity on a large format. It is suitable for use in indoor environment (public institutions, banks, bus and railway stations, airports, schools, offices, hotels, restaurants, etc.).

Its enclosure consists of aesthetic anodized aluminum frame, non-glare front cover glass and steel back panel. Excellent readability is ensured by super-bright 7-segment LED modules with a wide viewing angle.

Temperature and humidity sensor probe is detachable and connects into display frame from the bottom side. Display is equiped with USB interface for connecting to PC and data logging of measured values.
Power supply cable is attached from the back side.
